Stainless Steel Welded Wire Mesh
Stainless Steel Welded Wire Mesh enjoys excellent corrosion resistance, beautiful look, longer work time, when compared with galvanized welded iron wire mesh or PVC coated welded iron wire mesh. Welded wire mesh with stainless steel grades are our featured products. 1/4" opening is the smallest hole size we can offer, the max hole size we can offer is 8" or 200mm. We offer stainless steel 316 & 316L to customers, used in coastal city, or marine and high corrosion envirorment. Can be used in aerospace industry.
Material: AISI316(DIN1.4401), AISI316L(DIN1.4404).
SS316: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion. SS316L: Similar properties as 316ss but lower carbon content to permit better welding.
Hole Opening: Min1/4" to Max 8"
Features:
It can withstand the corrosion caused by atmospheric / environmental or major chemical reactions.
It can resist high temperatures without going under any deformity which makes it highly recommended for fire safety doors in any building.
It has remarkable creep strength and Rupture strength.
It repels the Bacteria which makes it ideally suitable material for the venue such as Hospitals, educational Institutes, Hotels and even at home and office where higher degree of hygiene is required.
Due to its natural finish, product does not require regular cleaning or maintenance making it most suitable for public places.
Applicatioins:
As SS316(L) grade with better corrosion resistance, the welded wire mesh is mainly used in coastal city or marine environment. Widely used in agriculture, construction, breeding, transport, mining, horticulture industries. Used as security or isolation fencing, decoration, machinery protection, and other publics.
Specifications:
| Opening Size | Wire Diameter |
| Inch | mm | SWG | mm |
| 1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm |
| 3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm |
| 1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm |
| 5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm |
| 3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm |
| 1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm |
| 1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm |
| 1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm |
| 1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm |
| 2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm |
| 2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm |
| 3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm |
| 2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
| 4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
| 8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm |
Other sizes as your special request.
Packing: in waterproof paper and film, then in pallets. Custom packing available at request.
|
|

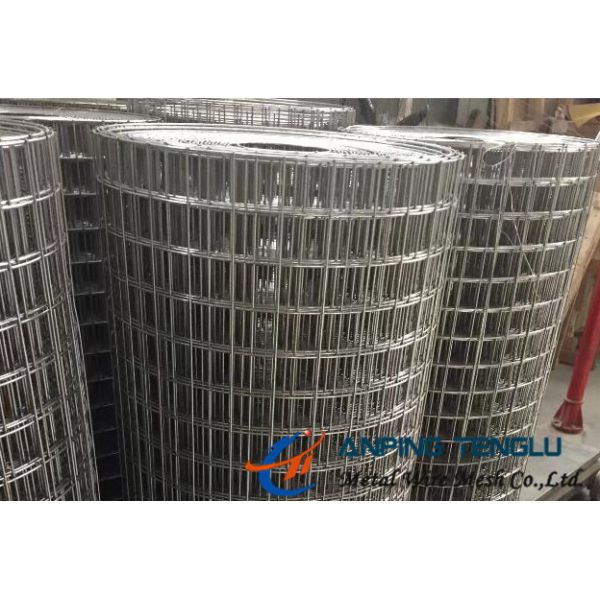

AISI316, AISI316L Weled Wire Mesh, Used in Coastal City or Sea Water Images
|
